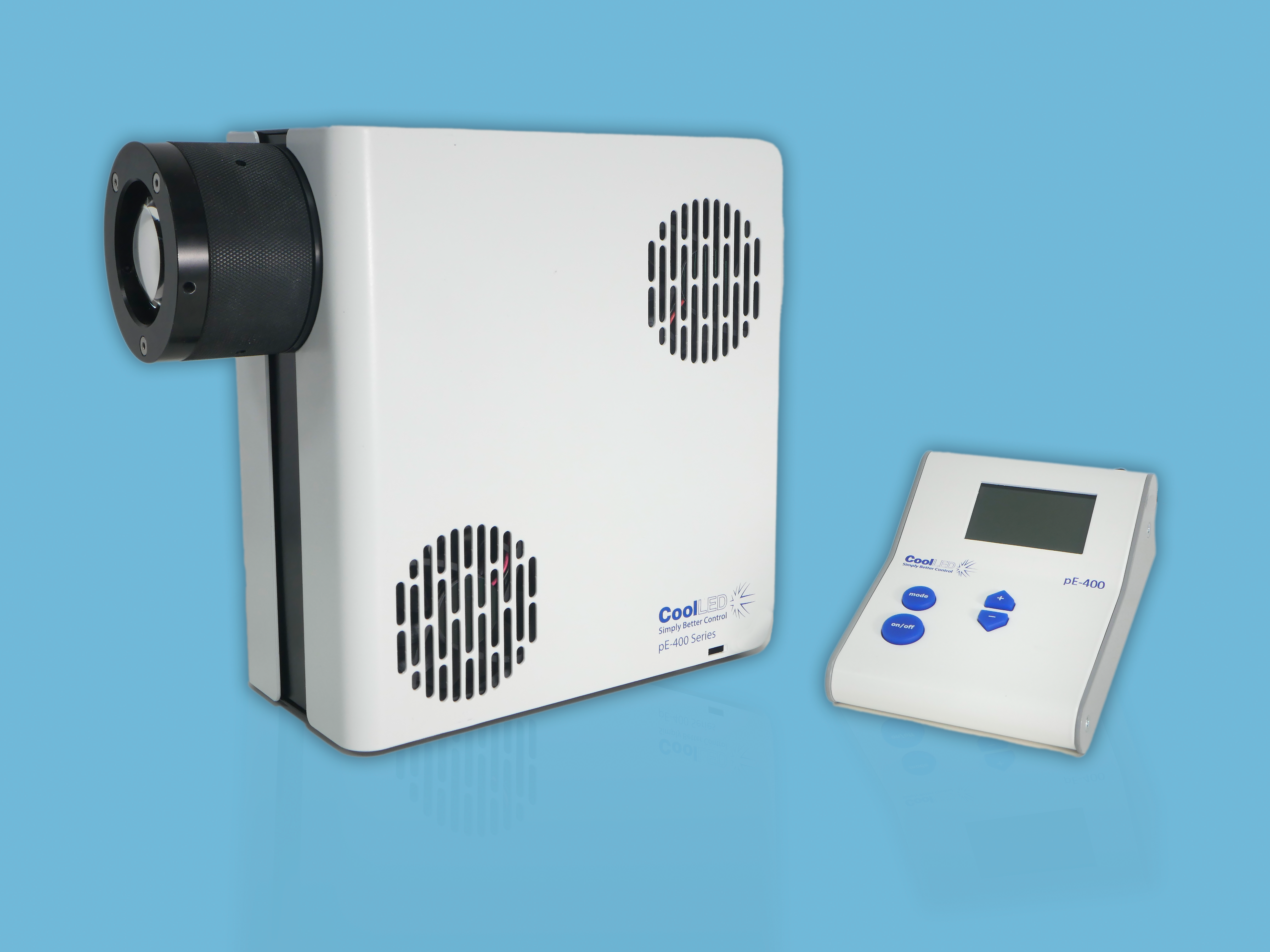

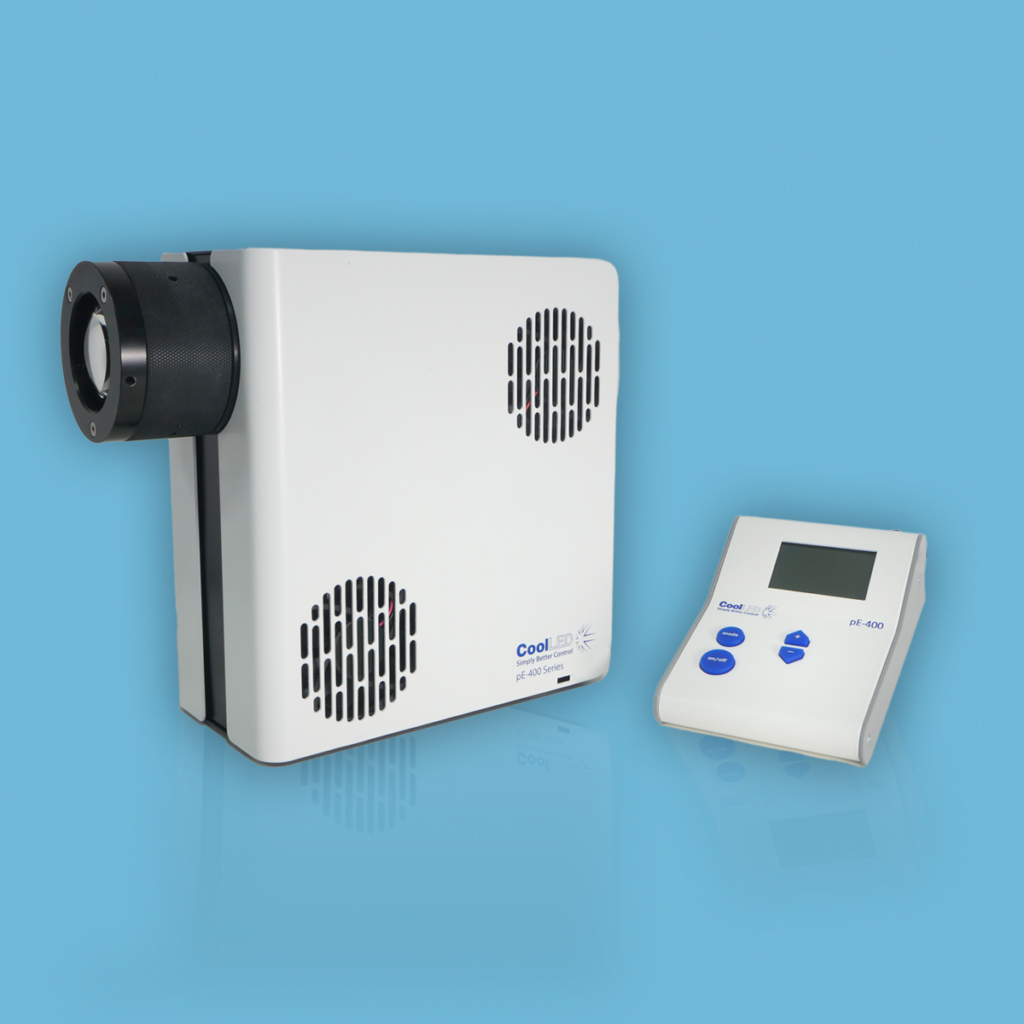

pE-400 with Control Pod

Overview

Building on the success of the popular pE-300 Series, the pE-400 is a simple bright white light Illumination System and a controllable, cost-effective replacement for mercury and metal halide lamps. Four powerful LEDs offer intense, broad-spectrum coverage for the most popular fluorophores, ranging from DAPI through YFP to Cy5.

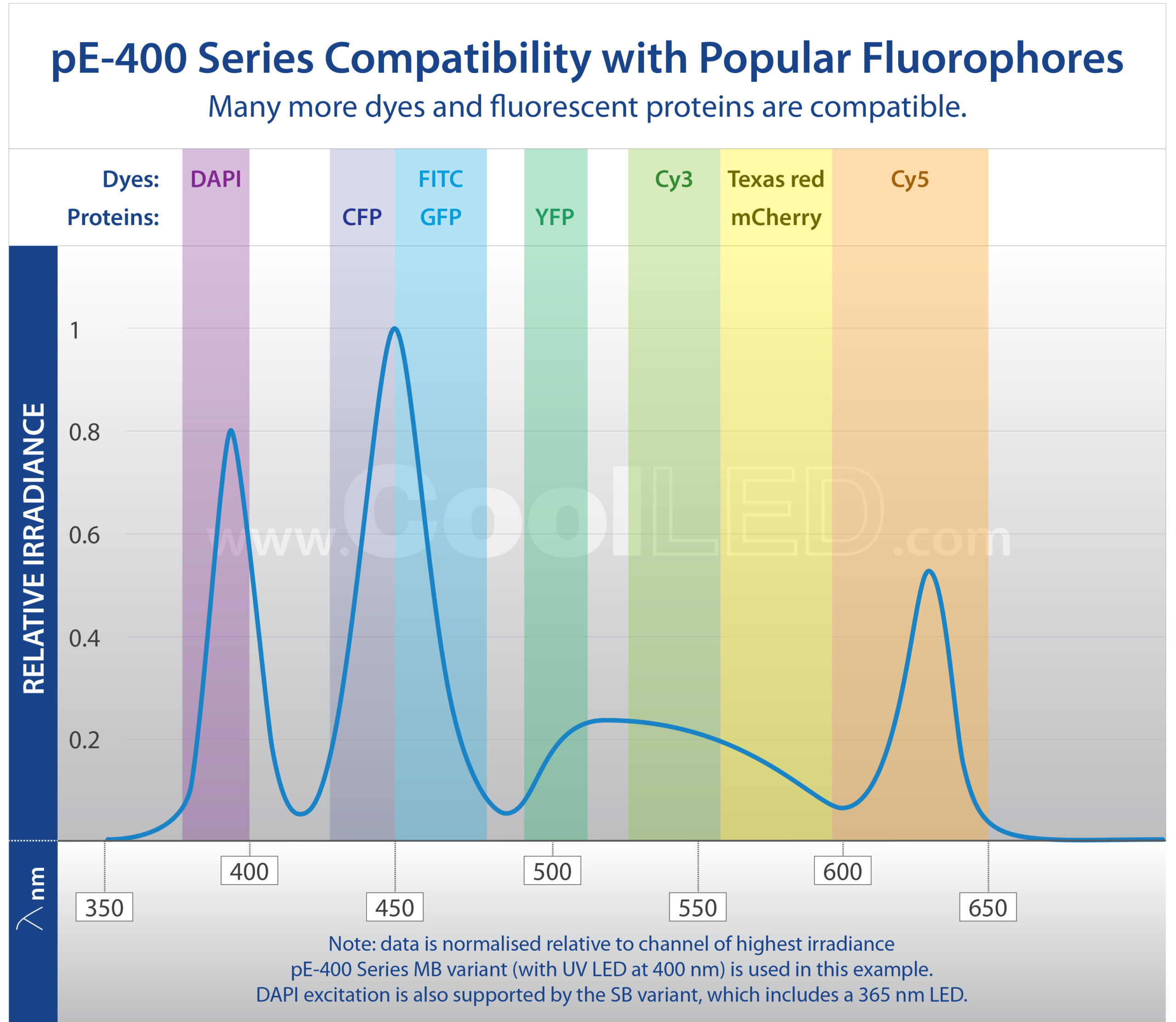

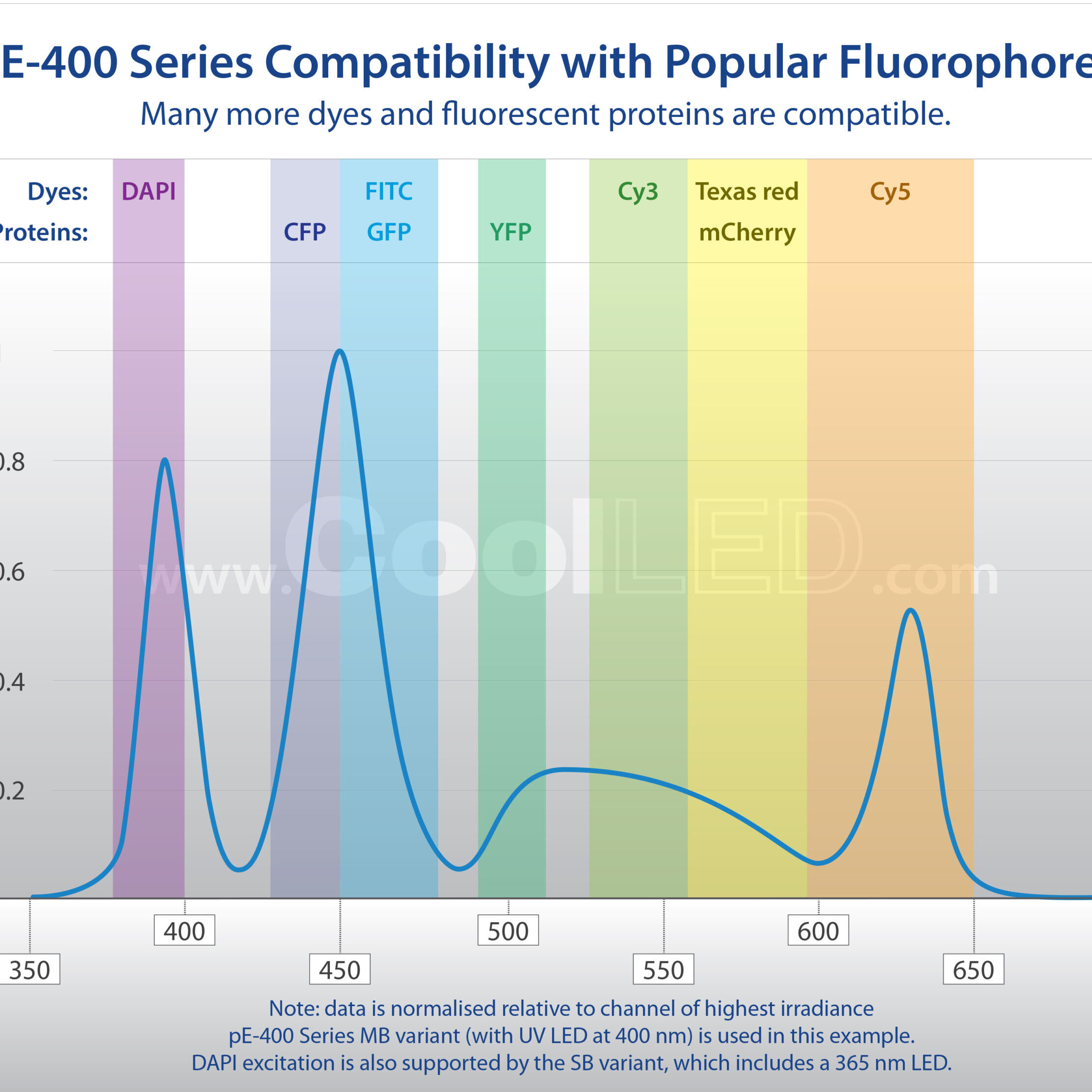

pE 400 Series Normalised Spectrum

The white light pE-400 Illumination System enables optimised illumination at the touch of a button. It brings a new level of efficiency to applications such as fluorescence screening or sample visualisation on confocal setups, making the inconvenience of lamps a thing of the past.

Protecting your samples

Tight hardware synchronisation not only increases temporal resolution, but also means samples are exposed only during acquisition, protecting against photobleaching and phototoxicity and pushing the boundaries of time-lapse studies.

Live samples can be further protected by balancing the irradiance to the lowest level possible while still maintaining image quality, with control in 1% steps up to 100%. And the more life-like a cell behaves, the more valuable a data set becomes.

TTL triggering graph pE 400

Capturing dynamic events is possible with the highest temporal resolution even without software, thanks to precise hardware synchronisation via global TTL input (>10µs) and compatibility with the pE-6501 (USB controlled TTL trigger box). This also enables seamless integration into compatible third-party imaging software such as Evident cellSens.









Intuitive global control

Global control of the white light on/off and irradiance is achieved through the manual control pod for quick and simple operation. For more complex experiments, global control is also possible with third-party imaging software (via USB Type B connection) and users can benefit from full integration into µManager.

Sustainable illumination

The compact pE-400 Illumination System builds on award-winning CoolLED technology, with stable and reliable performance and ultra-low power consumption. The sustainability benefits go beyond energy efficiency, and by removing the need for toxic mercury, the pE-400 is a natural choice for cleaner, greener labs.

Fit to your microscope

The compact pE-400 is compatible with the majority of microscope models, with two light delivery configurations available: direct fit and liquid light guide.

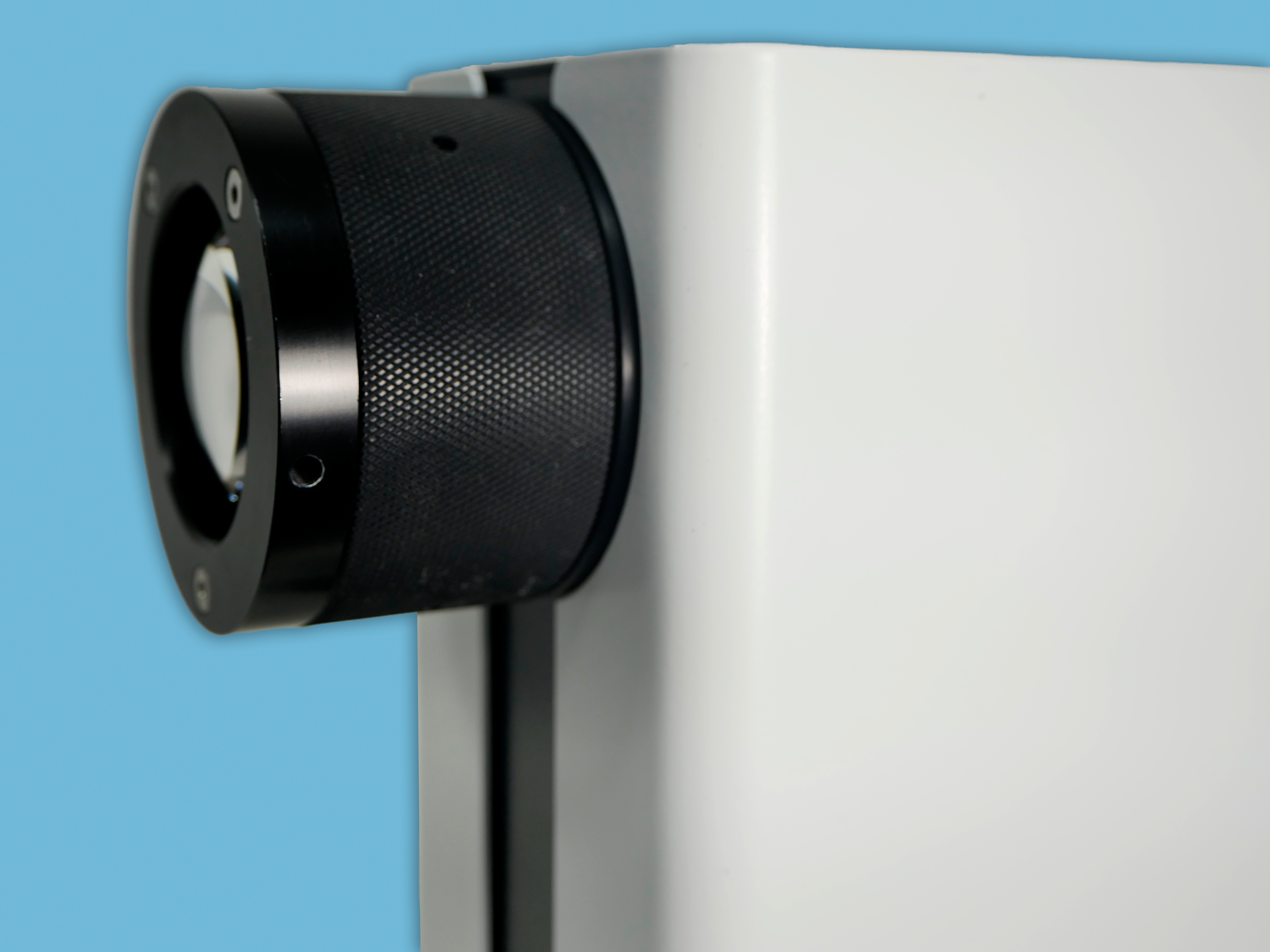

Direct fit variants achieve higher irradiance by directly connecting to the microscope via dedicated microscope adaptors, with a simple once-only adjustment optimising the optical path of the microscope. Not only do these variants avoid extra loss of irradiance as the liquid light guide degrades over time, but they are also more cost-effective. This is because they avoid the need to replace the liquid light guide when it comes to the end of its life.

If there is a requirement to keep the source of illumination remote from the microscope, liquid light guide variants are available. These require a fixed 3 mm diameter liquid light guide, and an optional pE-Universal Collimator can be specified in conjunction with a microscope adaptor if required.

  • Global control of white light
  • Broad spectrum white light from 365-635 nm, ranging from DAPI through YFP to Cy5.
  • Seamless integration into compatible third party imaging software and cost-effective high-speed imaging with pE-6501 USB controlled TTL trigger box
  • <10 µs global TTL triggering for camera synchronisation
  • Simple control pod for intuitive manual operation
  • Optimised irradiance control in 1% steps (0-100%)
  • Direct fit variant available for higher irradiance with selected/all major microscope models
  • Light delivery also available via liquid light guide.

Plus all the benefits afforded by LED Illumination Systems, such as sustainability and longevity.

The system comprises a pE-400 Light Source, power supply and control pod for operation and access to settings and usage history.

Control

Manual:
Manual control for instant on/off and irradiance control (1% steps from 0 – 100%)

Remote:

Via global TTL for on/off control using a BNC connection on the Light Source

Triggering speed <10 µs at full power

Connectivity:

Remote via USB Type B for imaging software control (see Imaging Software)

Variant selection

Light delivery:

Direct fit variants are coupled to the microscope via CoolLED epi-fluorescent microscope adaptor. Liquid Light Guide variants require a fixed 3 mm diameter liquid light guide and optional pE-Universal Collimator to be specified in conjunction with a microscope adaptor if required.

UV wavelength:

SB variant features 365 nm LED.

MB variant features 400 nm LED.

Specification

Power requirements:
100-240 V a.c. 50/60 Hz

Power consumption:

pE-400 Series At the wall (includes power supply unit consumption)
Standby 2 W
Full white irradiance 80 W



Dimensions:

pE-400 Light Source: 243 mm (w) x 102 mm (d) x 197 mm (h).  Weight 1.8 kg
pE-400 Control Pod: 125 mm (w) x 90 mm (d) x 40 mm (h).  Weight 0.3 kg
pE-400 Power Supply: 167 mm(w) x 67 mm(d) x 35 mm(h) Weight 0.62 kg

Upgradeability

In-field firmware upgrade capability

Environment and Safety
  • Mercury-free and laser-free
  • Energy Efficient
  • Long lifetime
  • No bulb replacements
  • Reduced risk of eye damage
  • Quiet operation
  • No special disposal regulations or issues
Warranty

Industry-leading 36 months. Read more here.

All data correct at time of publication

pE400 All Channel Spectrum Graph FINAL 01
pE-400 Series MB Spectrum graph
pE-400 Series SB Spectrum graph

We are often asked about the power, intensity or irradiance of CoolLED Illumination Systems. The answer is not as simple as you might believe from many websites and data sheets, and it can be difficult to compare data from these sources as measuring set ups differ.

Photons are also lost as light travels from the light source to sample plane. The only way to objectively compare light sources is by measuring irradiance at the sample plane.  To understand why we use the term irradiance and how to measure and compare light sources with accuracy and precision, download our white paper. Or please contact us if you have further questions.



For performance data, please contact us

The scientific community is driving change across academia, industry and government to make laboratories more sustainable. When it comes to fluorescence microscopy illumination, switching to the pE-400 Series can help laboratories meet their sustainability targets, by consuming less energy and avoiding the use of toxic mercury.

“It’s great to see how My Green Labs and CoolLED are helping to move things ahead in the area of laboratory sustainability”. – Todd Lynch, UCLA Capital Programs

No reviews for this product
No application notes for this product
No images galleries for this product
Light SourceApplicationTypeCoolLED LEDChromaSemrock
pE-400 SB, pE-400 MBFluorescenceSingle55049003 ET-eYFPYFP-A-BASIC
pE-400 SB, pE-400 MBFluorescenceSingle55049065 ET-eYFPLED-YFP-A
pE-400 SB, pE-400 MBFluorescenceSingle550YFP-2427B
pE-400 SB, pE-400 MBFluorescenceSingle450, 55049064 ET -eYFP LED Wide f/ pE-300
pE-400 SB, pE-400 MBFluorescenceSingle550Avant-YFP  AF01-504/24  AF521-Di01  AF01-539/27
pE-400 SB, pE-400 MBFluorescenceSingle450, 55049064 ET-eYFP Wide
pE-400 SB, pE-400 MBFluorescenceSingle365 or 40049053 ET – DAPI for 355-405nm LEDs
pE-400 SBFluorescenceSingle36539000 AT DAPI/Hoechst/AlexaFluor 350LED-DAPI-B
pE-400 SBFluorescenceSingle36549000 ET Dapi
pE-400 SB, pE-400 MBFluorescenceSingle45049001 ET eCFPLED-CFP-A
pE-400 SB, pE-400 MBFluorescenceSingle45049013 – ET – TFP (Teal FP)LED-mTFP-A
pE-400 SB, pE-400 MBFluorescenceSingle45049002 ET – EGFP (FITC/Cy2)GFP-4050B
pE-400 SB, pE-400 MBFluorescenceSingle45039002 AT – EGFP/FITC/Cy2/AlexaFluor 488GFP-A-Basic
pE-400 SB, pE-400 MBFluorescenceSingle45049054 ET – GFP for 455-465nm LEDs
pE-400 SB, pE-400 MBFluorescenceSingle55049004 ET Cy3/TRITCTxRed-4040C
pE-400 SB, pE-400 MBFluorescenceSingle55049005 ET DSRed (TRITC/Cy3)LED-TRITC-A
pE-400 SB, pE-400 MBFluorescenceSingle55049055 ET – Wide mCherry/Texas Red for 540-580nm LEDs
pE-400 SB, pE-400 MBFluorescenceSingle55049056 – ET – Narrow mCherry/Texas Red for 540-580nm LEDs
pE-400 SB, pE-400 MBFluorescenceSingle55049008 ET – mCherry, Texas Red®YFP-2427B
pE-400 SB, pE-400 MBFluorescenceSingle55039010 AT – Texas Red/mCherry/AlexaFluor 594LED-mCherry-A
pE-400 SB, pE-400 MBFluorescenceSingle550 & 63549006 ET CY5Cy5-4040C
pE-400 SB, pE-400 MBFluorescenceSingle550 & 63539007 AT – Cy5/AlexaFluor 647/Draq5
pE-400 MBFluorescenceSingle40049021 ET – EBFP2/Coumarin/Attenuated DAPILED-DAPI-B
pE-400 MBFluorescenceSingle40049028 ET – DAPI for 395nm
pE-400 MBFluorescenceSingle63549009 – ET – Cy5 Narrow Excitation
pE-400-D-SB-YYY-ZZ pE-400 direct fit Illumination System with exchangeable microscope adaptor to customer-specified microscope, remote manual control pod, and power supply.  Single Band filter set configuration.
pE-400-D-MB-YYY-ZZ pE-400 direct fit Illumination System with exchangeable microscope adaptor to customer-specified microscope, remote manual control pod, and power supply.  Multi-Band filter set configuration.
pE-400-L-SB-SYS-ZZ pE-400 Illumination System for use with 3 mm Liquid Light Guide.  Single band filter configuration.  Includes light source, control pod & power supply
pE-400-L-MB-SYS-ZZ pE-400 Illumination System for use with 3 mm Liquid Light Guide.  Multi-band filter configuration.  Includes light source, control pod & power supply



pE-1906 1.5 m long, 3 mm diameter liquid light guide
pE-10400-YYY Universal Collimator & customer-specified adaptor
pE-6501 USB-TTL Conversion Kit



To specify microscope code (YYY), see Adaptors

To specify Power Cable (ZZ):  10 = Australia, 20 = Europe, 30 = UK, 40 = USA

USB-TTL Conversion kit

USB-TTL Conversion kit

pE-Universal Collimator

pE-Universal Collimator

Liquid Light Guide

Liquid Light Guide

Adaptors

Adaptors

We are working to fully integrate the pE-400 into all major third party imaging software programs, but in the meantime you can use the pE-6501 USB controlled TTL trigger box for software control.

The CoolLED pE Driver is first required for software integration, and can be downloaded here.

CompanySoftwareSummaryQuick Start GuideVideo
µManagerµManager

Contact CoolLED for further information.
